Universal Aluminum 1L/2L Engine Coolant Radiator Overflow Tank Oil Catch Can Square Overflow Tank With Drain Plug

Describe:
The car engine oil catch can is designed to collect waste oil, reduce carbon accumulation in engine room, prolong the service life of engine. It Improves the working efficiency of the engine, makes your driving more smoothly.

 1. Universal fitment, suitable to most vehicles.

2. Complete kit with reservoir cap, easy to install.Install this oil catch can away from heat source as far as possible. (Rotatecap to open or close tank easily and quickly.)

3. There are 4 screw holes on flanges. You can choose holes to fix tank conveniently based on the actual installation situation.

4. There are 6 threaded holes on tank.You can match freely to install the inlet and outlet nozzles and level indicator. (Level indicator for easy reading of fluid level.)

5. Use TIG welding to make the seams tighter and firmer.

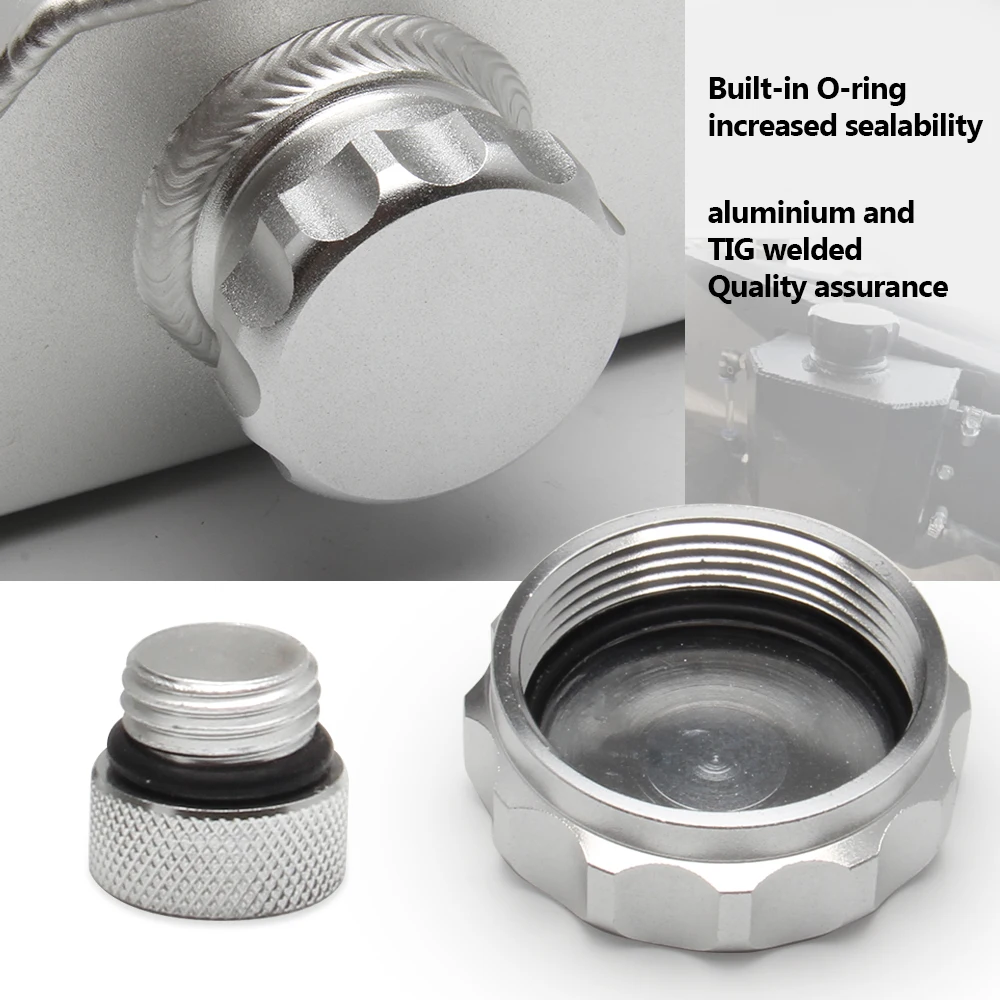

6. Magnetic Drain plug at the bottom for easy draining and cleaning.

Specification：

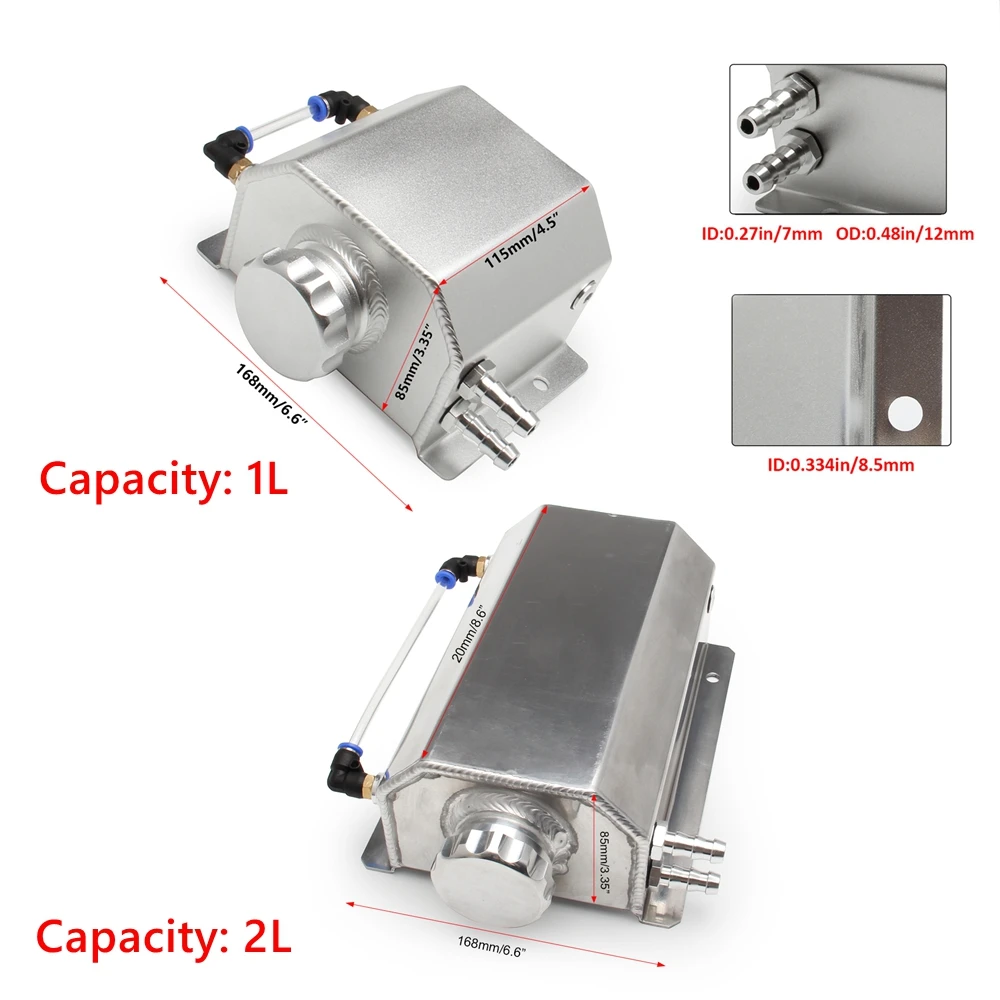

Capacity:

1L, width 168mm, height 85mm, length: 115mm.

2L, width 168mm, height 85mm, length: 220mm.

Thread Size: ORB-6

Inlets/Outlets Size: 0.4''

Material: Alloy Aluminium
Color: silver/black

Packing Included:
1 x Aluminum oil catch can tank

1 x Aluminum pin cover

Installation Instructions:

1.Open hood to find PCV valve and intake mainfold, and judge right place to install oil catch can.

2.Sit the can with screws and install the inlet/outlet nozzles, attach 2 hoses to the nozzles.

3.Connect 2 hoses to PVC valve and intake manifold respectively.

4.Remove original short hose and tidy up the new hoses.

Note:

No installation guides are included, it recommend to seek professional installation. Any damage during installation will not be refunded.

All dimensions are measured by hand and may have slight deviations.

Please check that the picture matches before purchase. Due to differences between monitors, images may not reflect the actual color of the product, thanks for your understanding.
