SPECIFICATIONS

Vendor Name: Horsepower Addicts

Origin: Mainland China

Model Number: 1015

Type: Test Instruments

Condition: :100% Brand New

Item weight: 1.65kg

This Engine Compression Gauge can identify various common engine issues, such as worn piston rings, cylinder head cracks, worn valves, and blown head gaskets. It measures leakage in engine cylinders and helps pinpoint the root cause. Perfect for testing trucks and cars with limited clearance, this tool is suitable for both local and imported vehicles. It can be used on any petrol engine with 12mm or 14mm spark plugs to test for cylinder leakage. The results are compared to the normal cylinder pressure of the engine to determine the extent of the leakage.

 The gauge measures the leak rate of each cylinder with pressurized air, displaying the results from 0 to 100%. Equipped with a dual gauge, quick coupling, and pressure release button, along with a manometer featuring two test pressures of 0-100psi and 0-7bar.

 Description：

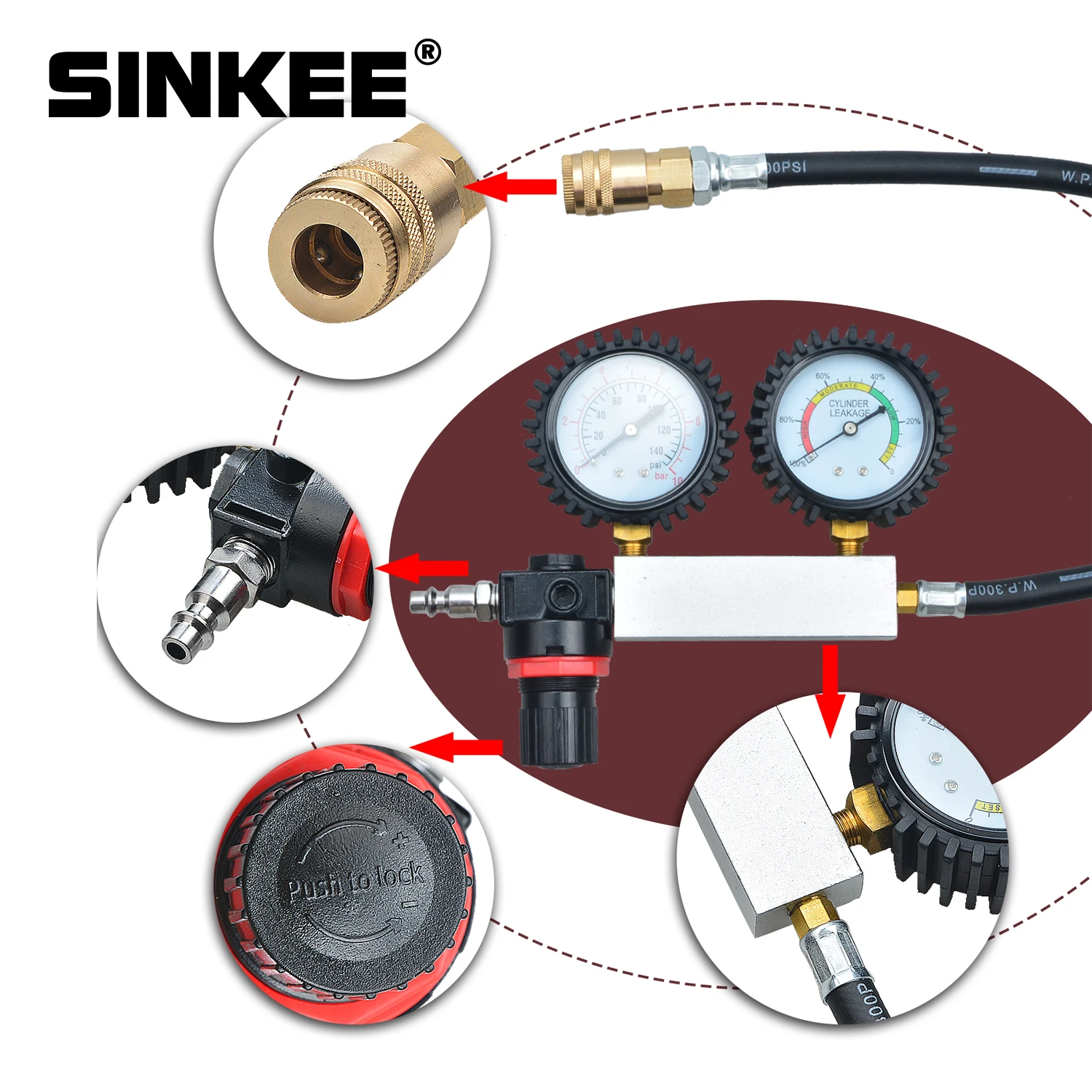

This is a high quality TU-21 cylinder leak detector, including double gauge system, 2-1/2" input pressure gauge, snap-on quick connect male connector, gauge scale 0-100PSI, 12mm, 14mm spark plug adapters, air regulator and carry case

 Specification:

Case Color: Red or Blue

Material: Rubber + Aluminum + Iron

Dual Gauge Readings: 0-100psi, 0-7bar, 0-100%

Test Unit/Mode: bar, psi

Special function: Get Accurate Readings

Pressure Gauge Diameter: 3" / 75mm

Pressure Gauge Height: 6.42" / 163mm

Spark Plug Adapters Thread Size: 12mm, 14mm

Hose Overall Length: 17.72" / 450mm

Short Hose Length: 11.81" / 300mm

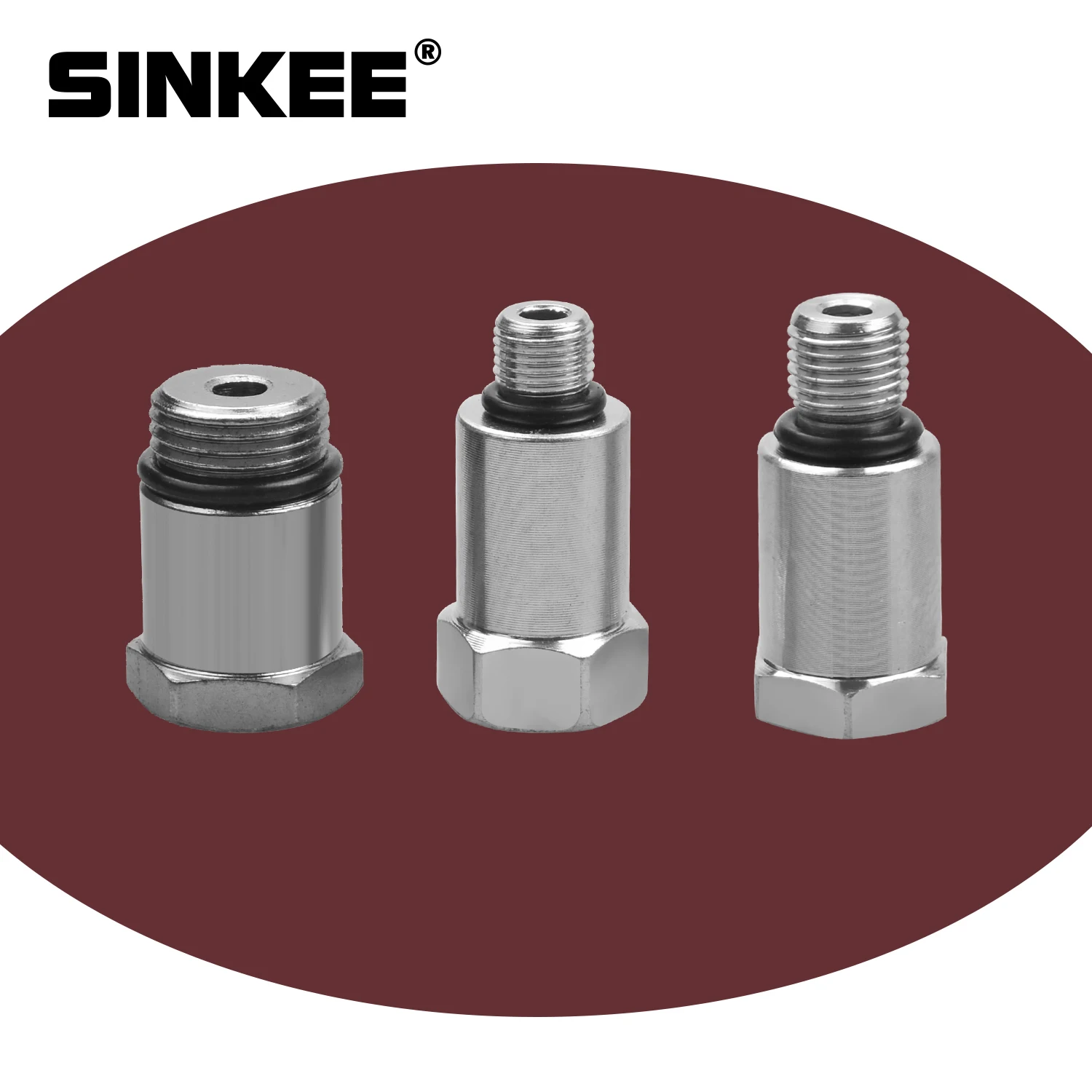

Fixed Short Connector: M12 x 26mm

Fixed Long Connector: M14 x 26mm

Package Size: 34 * 25 * 10cm

Package Weight: Approx. 1700g

 Package List：

1 x Dual gauged Leak Detection Unit(Suitable for use on any petrol engine with 12mm or 14mm spark plugs)

1x Flexi Hose

1x Fixed short connector

1x Fixed long connector

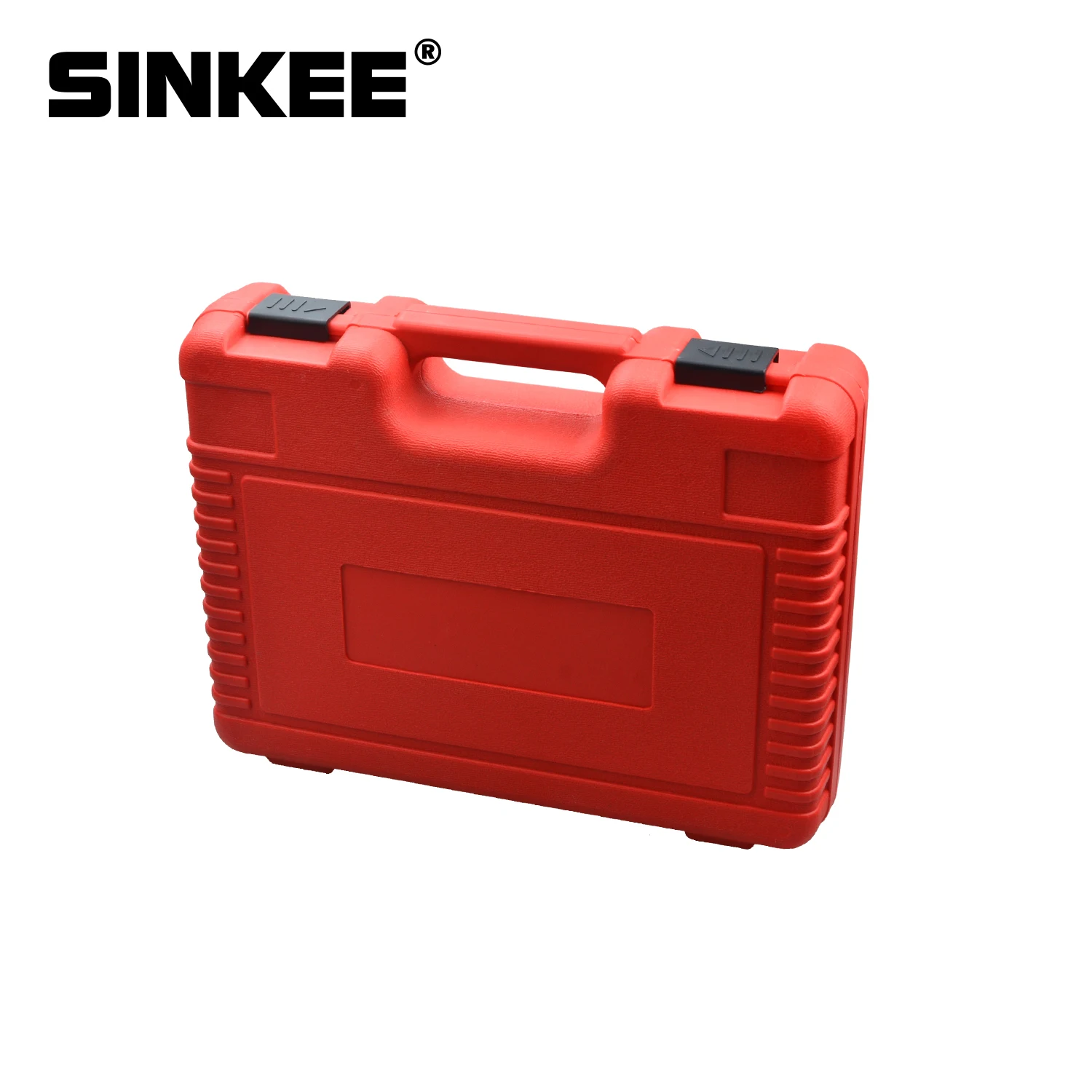

1xStorageCase
